EZ Connect Floats
Modular Floats for Hose, Pipe & Cable
EZ Connect Floats are the industry’s most versatile, durable, and reusable solution for marine, dredging, and industrial fluid transfer operations.
Modular. Durable. Easy to Install.
EZ Connect Floats are engineered for the toughest marine, dredging, and industrial environments. With a patented, one-size-fits-most modular design, these pipe, hose, and cable floats give you the flexibility, buoyancy, and performance you need—without the maintenance headaches.
Patented Float Technology
Modular, “one-size-fits-all” floats accommodating 1–40 in. diameter lines
Made of bright-red polyethylene for visibility and durability
Reusable: no foam inserts; can add foam if needed for buoyancy
No need to replace the entire float assembly when damaged—individual units can be swapped
Why Choose EZ Connect Floats?

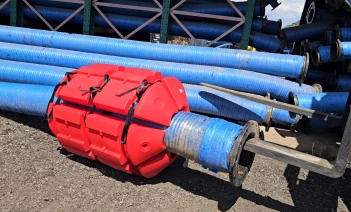

Modular Design
Fits pipe, hose, or cable diameters from 1” to 40”

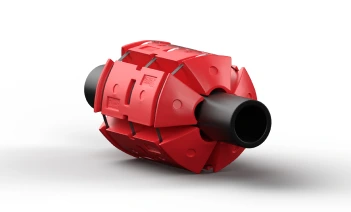

Patented System
No foam core, no size restrictions, and fully reusable

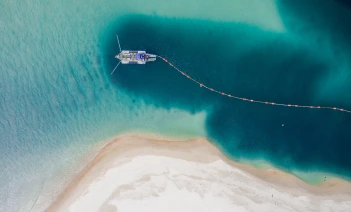

High Visibility & Strength
UV-resistant red polyethylene + stainless steel ratchets

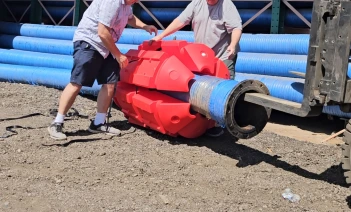

Fast Setup
Quick clamp-and-strap system means rapid install and removal

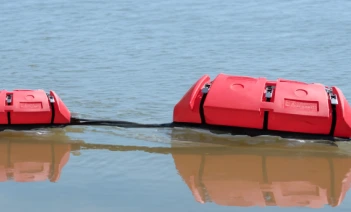

Extreme Durability
Built for saltwater, sun, cold, and impact resistance

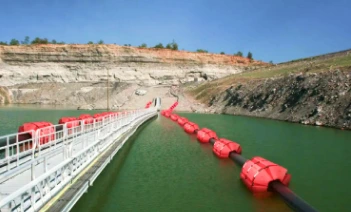

Eco-Friendly
100% recyclable materials with optional foam inserts
Float Specifications at a Glance
| Float Size Fill | Pipe Diameter | Floats Per Set | Submergence at 50% | Data Sheet |
|---|---|---|---|---|
| 1” | 1 in / 25.4mm | 1 Unit | 67 lbs / 30.4 kg |  |
| 2” | 2 in / 50.8 mm | 1 Unit | 67 lbs / 30.4 kg | |
| 3” | 3 in / 76.2mm | 1 Unit | 67 lbs / 30.4 kg | |
| 4” | 4 in / 101.6 mm | 2 Units | 134 lbs / 60.8 kg | |
| 5” | 5 in / 127mm | 2 Units | 134 lbs / 60.8 kg | |
| 6” | 6 in / 152.4 mm | 3 Units | 201 lbs / 91.2 kg | |
| 8” | 8 in / 203.2 mm | 4 Units | 268 lbs / 121.6 kg | |
| 10” | 10 in / 254 mm | 5 Units | 335 lbs / 152 kg | |
| 12” | 12 in / 304.8 mm | 6 Units | 402 lbs / 182.3 kg | |
| 14” | 14 in / 355.6 mm | 7 Units | 469 lbs / 212.7 kg | |
| 16” | 16 in / 406.4 mm | 7 Units | 469 lbs / 212.7 kg | |
| 18” | 18 in / 457.2 mm | 8 Units | 536 lbs / 243.1 kg | |
| 20” | 20 in / 508 mm | 8 Units | 536 lbs / 243.1 kg | |
| 22” | 22 in / 558.8 mm | 9 Units | 603 lbs / 273.5 kg | |
| 24” | 24 in / 609.6 mm | 9 Units | 603 lbs / 273.5 kg | |
| 26” | 26 in / 660.4 mm | 9 Units | 603 lbs / 273.5 kg | |
| 28” | 28 in / 711.2 mm | 10 Units | 670lbs / 303.9kg | |
| 30” | 30 in / 762 mm | 10 Units | 670 lbs / 303.9 kg | |
| 32” | 32 in / 812.8 mm | 11 Units | 737 lbs / 334.3kg | |
Technical Advantages
- Compatible with hoses, pipes, cables, umbilicals – no adapter needed
- Add reflectors or foam to meet visibility and buoyancy specs
- Replace individual damaged float halves—no full assembly replacements
- Ships compact to save on freight and storage
- Quick clamp‑on assembly using stainless steel ratchet straps; no tools needed
Ideal For
Keeps discharge and suction hoses afloat for uninterrupted sediment transport in rivers, lakes, and lagoons.
Stabilizes floating pipelines and cables in port, jetty, and offshore infrastructure projects.
Supports critical umbilicals, hoses, and flowlines in offshore and coastal fluid transfer operations.
Provides safe flotation for slurry and tailings pipelines in pits, ponds, and remote extraction zones.
Keeps aeration and bypass lines above water for better access, inspection, and maintenance.
Rapidly deploys to float emergency water lines, stormwater systems, or fuel hoses in disaster zones or for repairs.
Frequently Asked Questions
What sizes of pipes and hoses can EZ Connect Floats support?
Our modular floats can accommodate diameters from 1 inch up to 40 inches, making them suitable for a wide range of pipeline, hose, cable, and umbilical applications.
Are the floats reusable or single-use?
EZ Connect Floats are fully reusable. They feature a patented clamshell design that allows for quick installation, removal, and reconfiguration without the need for permanent fittings.
Do I need foam inserts with every float?
No. The floats are buoyant without foam under standard conditions, but foam inserts can be added if extra buoyancy is required for heavier lines or turbulent water.
How are the floats installed?
Each float is secured with corrosion-resistant stainless steel ratchet straps. No special tools are required for installation.
Can I replace a single damaged float section?
Yes. One of the key advantages of EZ Connect Floats is modular replacement—you don’t have to replace the entire assembly if one part is damaged.
Are these floats suitable for saltwater and harsh weather?
Absolutely. Made from UV-stabilized, marine-grade polyethylene, they are engineered to withstand sun, salt, impact, and cold weather.
Do you offer floats for cables and umbilicals?
Yes. Our design supports hoses, pipes, cables, and umbilicals—regardless of whether they’re round or irregularly shaped.
Can I add reflectors or markers to the floats?
Yes. Reflectors or additional visibility aids can be easily mounted to the floats for safety in low-light or high-traffic areas.
How do I determine the number of floats I need for my project?
Please reach out with your pipeline diameter, length, and project type, and our team will assist you in calculating the optimal float quantity and layout.
Do you ship internationally?
Yes. EZ Connect Floats are lightweight and modular, making them ideal for cost-efficient global shipping and deployment.
Ready to Float Smarter?
Choose EZ Connect Floats
Let us size your project and recommend the best float configuration for your needs.
